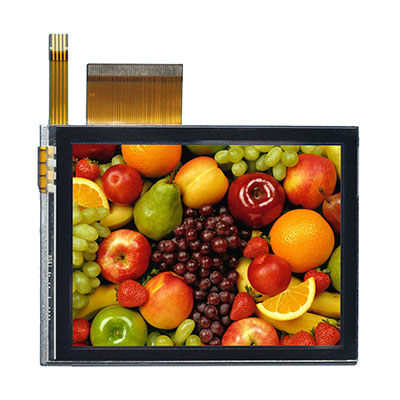

TFT：
Panel include TN, IPS and wide viewing technology.
Interface are available of RGB, LVDS, SPI, MIPI etc.
High brightness and transflective, Sunlight readable.
Customized design of FPC, back light, Touchscreen, bezel, PCB, interface and etc.
TFT module plus include driving PCB board, RTP/CTP assembly, OCA Full Bonding.
Product from 1.44inch to 12.1inch, be widely used in automotive, home appliance, medical instrument, industrial equipment and communication devices.
- +
点击收藏(人气0)

商品详细

  • Part No. Size Resolution Outline(mm) AA size(mm) View angle
    (U/D/L/R)         		Contrast Interface Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Controller Brightness Touch Panel Download
    JT144MGPSV01 1.44” 128x128 33.00x36.00 25.84x26.496 6 O'clock 500:1 8-bit parallel -20~70 -30~ 80 ST7735S 150 N
    JT144MGPSV02 1.44” 128x128 28.80x35.09 25.5x26.5 6 O'clock 500:1 MCU parallel -20~70 -30~80 ST7735S 150 N
    JT44MZGSV02 1.44” 128x128 32.36x38.00 25.5x26.5 6 O'clock 500:1 3/4 line SPI -20~70 -30~ 80 ST7735S 240 N


  • Part No. Size Resolution Outline(mm) AA size(mm) View angle
    (U/D/L/R)         		Contrast Interface Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Controller Brightness Touch Panel Download
    JT154GPAXV02 1.54” 320x320 31.52x33.72 27.72x27.72 All Viewing 500:1 MIPI -20~70 -30~ 80 ST7796S 400 N



























  • Part No. Size Resolution Outline(mm) AA size(mm) View angle
    (U/D/L/R)         		Contrast Interface Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Controller Brightness Touch Panel Download
    JT177MZHSV031 1.77” 128x160 34.70x46.70 28.032x35.04 6 O'clock 500:1 8-bit MCU -20~70 -30~ 80 ST7735S 320 N
    JT177MZHSV04 1.77” 128x160 34.70x46.70 28.032x35.04 12 O'clock 500:1 SPI -20~70 -30~80 ST7735S 320 N
    JT177MZHSV10 1.77” 128x160 34.70x46.70 28.032x35.04 6 O'clock 500:1 SPI -20~70 -30~ 80 ST7735S 150 N
  • Part No. Size Resolution Outline(mm) AA size(mm) View angle
    (U/D/L/R)         		Contrast Interface Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Controller Brightness Touch Panel Download
    JT200MHFIV01 2.0” 176x220 37.68x51.3 31.68x39.6 12 O'clock 500:1 8-bit parallel -20~70 -30~ 80 ILI9225 180 N
    JT200MLQIV04 2.0” 240x320 37.88x51.5 30.6x40.8 6 O'clock 500:1 8-bit MCU -20~70 -30~80 ILI9341 230 N
    JT200MZQSV01 2.0” 240x320 37.88x51.5 30.6x40.8 All Viewing 500:1 8-bit MCU -20~70 -30~ 80 ST7789H2 230 N

  • Part No. Size Resolution Outline(mm) AA size(mm) View angle
    (U/D/L/R)         		Contrast Interface Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Controller Brightness Touch Panel Download
    JT220MTQIV01 2.2” 240x320 41.04x56.45 33.84x45.12 12 O'clock 500:1 18bit RGB -20~70 -30~ 80 ILI9341V
    		N
    JT220MTQIV03 2.2” 240x320 41.04x56.45 33.84x45.12 6 O'clock 500:1 18bit RGB -20~70 -30~80 ILI9341V 200 N














  • Part No. Size Resolution Outline(mm) AA size(mm) View angle
    (U/D/L/R)         		Contrast Interface Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Controller Brightness Touch Panel Download
    JT230MTQIV03 2.31” 320x240 51.00x45.8 46.75x35.06 6 O'clock 500:1 SPI -20~70 -30~ 80 ILI9342C 280 N




























  • Part No. Size Resolution Outline(mm) AA size(mm) View angle
    (U/D/L/R)         		Contrast Interface Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Controller Brightness Touch Panel Download
    JT236MZQOV03 2.36” 480x234 55.20x47.55 48.0x35.69 6 O'clock 500:1 8-bit RGB -20~70 -30~ 80 OTA5182A 200 N




























  • Part No. Size Resolution Outline(mm) AA size(mm) View angle
    (U/D/L/R)         		Contrast Interface Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Controller Brightness Touch Panel Download
    JT240MCQIV01 2.4” 240x320 42.72x60.26 36.72x48.96 6 O'clock 500:1 8-bit MCU -20~70 -30~ 80 ILI9341V 200 N
    JT240MCQIV01P 2.4” 240x320 42.72x60.26 36.72x48.96 6 O'clock 500:1 8-bit MCU -20~70 -30~80 ILI9341V 160 Y
    JT240MCQIV04 2.4” 240x320 42.72x60.26 36.72x48.96 6 O'clock 500:1 8/16-bit parallel -20~70 -30~ 80 ILI9341V 200 N
    JT240MCQIV04P
    		 2.4" 240x320 42.72x60.26 36.72x48.96 6 O'clock 500:1 8/16-bit parallel -20~70 -30~80 ILI9341V 160 Y
  • Part No. Size Resolution Outline(mm) AA size(mm) View angle
    (U/D/L/R)         		Contrast Interface Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Controller Brightness Touch Panel Download
    JT270MZQIV04 2.7” 960x240 45.70x62.60 40.5x54.0 3 O'clock 500:1 8-bit RGB -20~70 -30~ 80 ILI8961 350 N
    JT270MZQIV06P 2.7” 960x240 45.70x62.60 40.5x54.0 3 O'clock 500:1 8-bit RGB -20~70 -30~80 ILI8961 270 R













  • Part No. Size Resolution Outline(mm) AA size(mm) View angle
    (U/D/L/R)         		Contrast Interface Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Controller Brightness Touch Panel Download
    JT280MCQIV03 2.8” 240x320 50x69.2 43.2x57.6 6 O'clock 500:1 MCU/RGB -20~70 -30~ 80 ILI9341V 200 N
    JT280MCQIV03P 2.8” 240x320 50x69.2 43.2x57.6 6 O'clock 500:1 MCU/RGB -20~70 -30~80 ILI9341V 160 R
    JT280MCQIV08 2.8” 240x320 50x69.2 43.2x57.6 6 O'clock 500:1 8/16-bit MCU -20~70 -30~ 80 ILI9341V 200 N
    JT280MCQIV17 2.8" 240x320 50x69.2 43.2x57.6 6 O'clock 500:1 RGB/MCU -20~70 -30~80 ILI9341V 200 N
  • Part No. Size Resolution Outline(mm) AA size(mm) View angle
    (U/D/L/R)         		Contrast Interface Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Controller Brightness Touch Panel Download
    JT320MTZSV01 3.2” 240x400 48.40x81.50 41.76x69.60 6 O'clock 500:1 8-bit RGB/MCU -20~70 -30~ 80 ST7793 400 N




























  • Part No. Size Resolution Outline(mm) AA size(mm) View angle
    (U/D/L/R)         		Contrast Interface Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Controller Brightness Touch Panel Download
    JT350MCHHV01 3.5” 320x480 54.66x82.94 48.96x73.44 All Viewing 500:1 SPI+18-bit RGB -20~70 -30~ 80 HX8357D 270 N
    JT350MCQHV05 3.5” 320x240 76.9x63.9 70.08x52.56 12 O'clock 500:1 SPI+24 bit RGB -20~70 -30~80 HX8238D 350 N
    JT350MCQHV05P 3.5” 320x240 76.9x63.9 70.08x52.56 12 O'clock 500:1 SPI+24 bit RGB -20~70 -30~ 80 HX8238D 240 R
    JT350MCQHV05C1
    		 3.5" 320x240 76.9x63.9 70.08x52.56 12 O'clock 500:1 24 bit RGB -20~70 -30~80 HX8238D 255 C
    JT350MCQHV05C3 3.5" 320x240 76.9x63.9 70.08x52.56 12 O'clock 500:1 24 bit RGB -20~70 -30~80 HX8238D 250 C
    JT350MCQHV18 3.5" 320x240 76.9x63.9 70.08x52.56 12 O'clock 500:1 SPI+24 bit RGB -20~70 -30~80 HX8238D 400 N
    JT350MCQHV18P 3.5" 320x240 76.9x63.9 70.08x52.56 12 O'clock 500:1 SPI+24 bit RGB -20~70 -30~80 HX8238D 320 R
    JT350MCQHV23P 3.5" 320x240 76.9x63.9 70.08x52.56 12 O'clock 500:1 SPI+24 bit RGB -20~70 -30~80 HX8238D 600 R
    JT350MTQVV01 3.5" 320x240 76.9x63.9 70.08x52.56 12 O'clock 500:1 SPI+24 bit RGB -20~70 -30~80 NV3035GTC 320 N
    JT350MTQVV01P 3.5" 320x240 76.9x63.9 70.08x52.56 12 O'clock 500:1 SPI+24 bit RGB -20~70 -30~80 NV3035GTC 250 R
    JT350MLQZV01 3.5" 320x240 76.9x63.9 70.08x52.56 6 O'clock 500:1 SPI/6/8bit RGB/wsync/8080 parallel -20~70 -30~80 SSD2119 380 N
    JT350MLQZV01P 3.5" 320x240 76.9x63.9 70.08x52.56 6 O'clock 500:1 SPI/6/8bit RGB/wsync/8080 parallel -20~70 -30~80 SSD2119 350 R
    JT350MLQZV02 3.5" 320x240 76.9x63.9 70.08x52.56 6 O'clock 500:1 SPI/6/8bit RGB/wsync/8080 parallel -20~70 -30~80 SSD2119 450 N
    JT350MLQZV02P 3.5" 320x240 76.9x63.9 70.08x52.56 6 O'clock 500:1 SPI/6/8bit RGB/wsync/8080 parallel -20~70 -30~80 SSD2119 380 R
    JT350MHHHV05 3.5" 320x480 54.66x82.94 48.96x73.44 6 O'clock 500:1 SPI+18 bit RGB -20~70 -30~80 HX8357D 320 N
    JT350MHHHV05P 3.5" 320x480 54.66x82.94 48.96x73.44 6 O'clock 500:1 SPI+18 bit RGB -20~70 -30~80 HX8357D 290 R
    JT350MTQIV01 3.5" 240x320 64x85 53.64x71.52 6 O'clock 500:1 SPI+18 bit RGB -20~70 -30~80 ILI9341V 150 N
    JT350MTVHV01 3.5" 480x640 64x85 53.28x71.04 9 O'clock 500:1 SPI+18 bit RGB -20~70 -30~80 HX8363A 570 N
    JT350MPNOV01 3.5" 480x272 86.8x56.5 77.76x43.52 6 O'clock 500:1 24 bit RGB -20~70 -30~80 OTA5180A 350 N
    JT350MPNOV01P 3.5" 480x272 86.8x56.5 77.76x43.52 6 O'clock 500:1 24 bit RGB -20~70 -30~80 OTA5180A 280 R
  • Part No. Size Resolution Outline(mm) AA size(mm) View angle
    (U/D/L/R)         		Contrast Interface Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Controller Brightness Touch Panel Download
    JT400MHQIV01 4.0” 320x240 96.00x76.00 82.08x61.56 6 O'clock 500:1 SPI+24 bit RGB -20~70 -30~ 80 ILI9322 350 N




























  • Part No. Size Resolution Outline(mm) AA size(mm) View angle
    (U/D/L/R)         		Contrast Interface Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Controller Brightness Touch Panel Download
    JT430MCNHV01 4.3” 480x272 105.5x67.2 95.04x53.86 12 O'clock 500:1 24-bit RGB -20~70 -30~ 80 HX8257A 350 N
    JT430MCNHV01P 4.3” 480x272 105.5x67.2 95.04x53.86 12 O'clock 500:1 24-bit RGB -20~70 -30~80 HX8257A 280 R
    JT430MCNHV01C 4.3” 480x272 105.5x67.2 95.04x53.86 12 O'clock 500:1 24-bit RGB -20~70 -30~ 80 HX8257A 280 C
    JT430MCNHV05
    		 4.3" 480x272 105.5x67.2 95.04x53.86 12 O'clock 500:1 24-bit RGB -20~70 -30~80 HX8257A 500 N
    JT430MCNHV05P 4.3" 480x272 105.5x67.2 95.04x53.86 12 O'clock 500:1 24-bit RGB -20~70 -30~80 HX8257A 400 R
    JT430MCNHV22 4.3" 480x272 105.5x67.2 95.04x53.86 12 O'clock 500:1 24-bit RGB -20~70 -30~80 HX8257A 1000 N
    JT430MINIV25 4.3" 480x272 105.5x67.2 95.04x53.86 12 O'clock 500:1 24-bit RGB -20~70 -30~80 ILI6480BQ 320 N
    JT430MINSV03 4.3" 480x272 105.5x67.2 95.04x53.86 12 O'clock 500:1 24-bit RGB -20~70 -30~80 ST7282-G4 1000 N
    JT430MPNOV01 4.3" 480x272 105.5x67.2 95.04x53.86 All Viewing 500:1 24 bit RGB -35~85 -40~85 OTA5180A 350 N
    JT430MBWIV08 4.3" 480x800 62.4x105.4 56.16x93.6 All Viewing 500:1 SPI+24bit RGB -20~70 -30~80 ILI9806E 350 N
  • Part No. Size Resolution Outline(mm) AA size(mm) View angle
    (U/D/L/R)         		Contrast Interface Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Controller Brightness Touch Panel Download
    JT500MINIV02P 5.0” 480x272 120.7x75.8 110.88x62.83 12 O'clock 500:1 24-bit RGB -20~70 -30~ 80 ILI6480B 200 R
    JT500MIWIV01 5.0” 800x480 120.7x75.8 108x64.8 12 O'clock 500:1 24-bit RGB -20~70 -30~80 ILI5960+ILI6122 250 N
    JT500MIWIV04P 5.0” 800x480 120.7x75.8 108x64.8 12 O'clock 500:1 24-bit RGB -20~70 -30~ 80 ILI5960+ILI6122 360 R
    JT500MIWIV04C
    		 5.0" 800x480 120.7x75.8 108x64.8 12 O'clock 500:1 24-bit RGB -20~70 -30~80 ILI5960+ILI6122 380 C
    JT500MIWIV13 5.0" 800x480 120.7x75.5 108x64.8 12 O'clock 500:1 24-bit RGB -20~70 -30~80 ILI5960+ILI6122 600 N
    JT500MIWIV13P 5.0" 800x480 120.7x75.8 108x64.8 12 O'clock 500:1 24-bit RGB -20~70 -30~80 ILI5960+ILI6122 450 R
    JT500MAHIV01 5.0" 1280x720 66.1x120.4 62.1x110.4 All Viewing 500:1 MIPI -20~70 -30~80 ILI9881C-2D 400 N
  • Part No. Size Resolution Outline(mm) AA size(mm) Contrast Interface Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Controller Brightness Touch Panel Download
    JT570MCVHV01 5.7” 640x480 127x98.43 115.2x86.4 500:1 18-bit RGB -20~70 -30~ 80 HIMAX 700 N
    JT57MCVHV01P 5.7” 640x480 127x98.43 115.2x86.4 500:1 18-bit RGB -20~70 -30~80 HIMAX 530 R













  • Part No. Size Resolution Outline(mm) AA size(mm) View angle
    (U/D/L/R)         		Contrast Interface Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Controller Brightness Touch Panel Download
    JT700MIWNV01 7.0” 800x480 164.9x100.0 154.08x85.92 6 O'clock 500:1 24-bit RGB -20~70 -30~ 80 NT52001+NT39419B 420 N
    JT700MIWNV01P 7.0” 800x480 164.9x100.0 154.08x85.92 6 O'clock 500:1 24-bit RGB -20~70 -30~80 NT52001+NT39419B 340 R
    JT1700MIWNV01C 7.0” 800x480 164.9x100.0 154.08x85.92 6 O'clock 500:1 24-bit RGB -20~70 -30~ 80 NT52001+NT39419B 330 C
    JT700MIWNV05
    		 7.0" 800x480 164.9x100.0 154.08x85.92 6 O'clock 500:1 24-bit RGB -20~70 -30~80 NT52001+NT39419B 400 N
    JT700MIWHV05-F 7.0" 800x480 165x104.54 152.4x91.44 12 O'clock 500:1 18-bit RGB -20~70 -30~80 HX8262+HX8678 430 F
    JT700MIWNV09 7.0" 800x480 164.85x99.95 154.08x85.92 6 O'clock 500:1 24-bit RGB -20~70 -30~80 NT52001+NT39419B 400 N
    JT700MIWNV24 7.0" 800x480 164.85x99.95 154.08x85.92 6 O'clock 500:1 24-bit RGB -20~70 -30~80 NT52001+NT39419B 1000 N
    JT700MIWHV11 7.0" 800x480 165x104.54 152.4x91.44 12 O'clock 500:1 LVDS -20~70 -30~80 HX8262+HX8678 600 N
    JT700MZWHV01 7.0" 800x480 164.8x99.8 154.08x85.92 12 O'clock 500:1 24-bit RGB -20~70 -30~80 HX8264+HX8664 400 N
    JT700MZWHV01P 7.0" 800x480 164.8x99.8 154.08x85.92 12 O'clock 500:1 24-bit RGB -20~70 -30~80 HX8264+HX8664 320 R
    JT700MZWHV08P 7.0" 800x480 164.9x100.0 154.08x85.92 12 O'clock 500:1 24-bit RGB -20~70 -30~80 HX8264+HX8664 400 R
    JT700MZWHV22 7.0" 800x480 164.8x99.8 154.08x85.92 12 O'clock 500:1 24-bit RGB -20~70 -30~80 HX8264+HX8664 1000 N
    JT700MIXNV01 7.0" 1024x600 165.75x105.93 153.6x90.0 6 O'clock 500;1 LVDS -20~70 -30~80 NT51008C+NT52002H 320 N
    JT700MZXHV05 7.0" 1024x600 164.9x100.0 154.21x85.92 All Viewing 500:1 LVDS -20~70 -30~80 TBD 400 N
    JT700MZXHV05C 7.0" 1024x600 164.9x100.0 154.21x85.92 All Viewing 500:1 LVDS -20~70 -30~80 TBD 340 C
    JT700MZYEV02 7.0" 1280x800 165.62x107.45 150.72x94.2 All Viewing 500:1 MIPI -20~70 -30~80 JD9365 300 N
  • Part No. Size Resolution Outline(mm) AA size(mm) View angle
    (U/D/L/R)         		Contrast Interface Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Controller Brightness Touch Panel Download
    JT800MIWNV01P 8.0” 800x480 192.8x116.9 176.64x99.36 6 O'clock 500:1 24-bit RGB -20~70 -30~ 80 NT52001+NT39419B 350 R
    JT800MIWNV01 8.0” 800x480 192.8x116.9 176.64x99.36 6 O'clock 500:1 24-bit RGB -20~70 -30~80 NT52001+NT39419B 450 N
    JT800MIXHV01 8.0” 1024x600 192.8x116.9 176.64x99.36 6 O'clock 500:1 LVDS -20~70 -30~ 80 HX8696+HX8282 450 N
    JT800MGPCV02
    		 8.0" 1024x768 201x152.3 162.05x121.54 All Viewing 500:1 MIPI -20~70 -30~80 TBD 250 C
    JT800MZYEV01C 8.0" 1280x800 199x132 172.22x107.64 All Viewing 500:1 LVDS -20~70 -30~80 EK79029 800 C
  • Part No. Size Resolution Outline(mm) AA size(mm) View angle
    (U/D/L/R)         		Interface Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Controller Brightness Touch Panel Download
    JT900MZWH01 9.0” 800x480 210.6x126.5 198.0x111.7 12 O'clock 24-bit RGB -20~70 -30~ 80 HX8664-B+HX8264-E 400 N


























  • Part No. Size Resolution Outline(mm) AA size(mm) View angle
    (U/D/L/R)         		Contrast Interface Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Controller Brightness Touch Panel Download
    JTA10MZXHV01 10.1” 1024x600 235x143 222.72x125.28 12 O'clock 500:1 LVDS -20~70 -30~ 80 HX8282-A+HX8696-A 450 N
    JTA10MZXHV01P 10.1” 1024x600 235x143 222.72x125.28 12 O'clock 500:1 LVDS -20~70 -30~80 HX8282-A+HX8696-A 340 R
    JTA10MZXHV02 10.1” 1024x600 235x143 222.72x125.28 12 O'clock 500:1 RGB -20~70 -30~ 80 TBD 350 N
    JTA10MZXHV02P
    		 10.1" 1024x600 235x143 222.72x125.28 12 O'clock 500:1 RGB -20~70 -30~80 TBD 250 R
